Medical Multifunction Drill Saw: Orthopedic Power Tool

4.3/5

Medical Multifunction Drill Saw: Orthopedic Power Tool

The medical multifunction drill saw is a versatile all-in-one orthopedic power tool that integrates multiple functions to enhance surgical efficiency and precision. It simplifies procedures, making it a critical instrument for both human and veterinary applications.

Medical Multifunction Drill Saw: The Ultimate Orthopedic Power Tool

The medical multifunction drill saw is the all-in-one orthopedic power solution trusted by professionals for its precision and adaptability. This single instrument is engineered to streamline surgical workflows, eliminating the need for multiple single-use tools and enhancing efficiency in the operating room. From complex human trauma cases to intricate veterinary procedures, this tool provides reliable performance where it matters most.

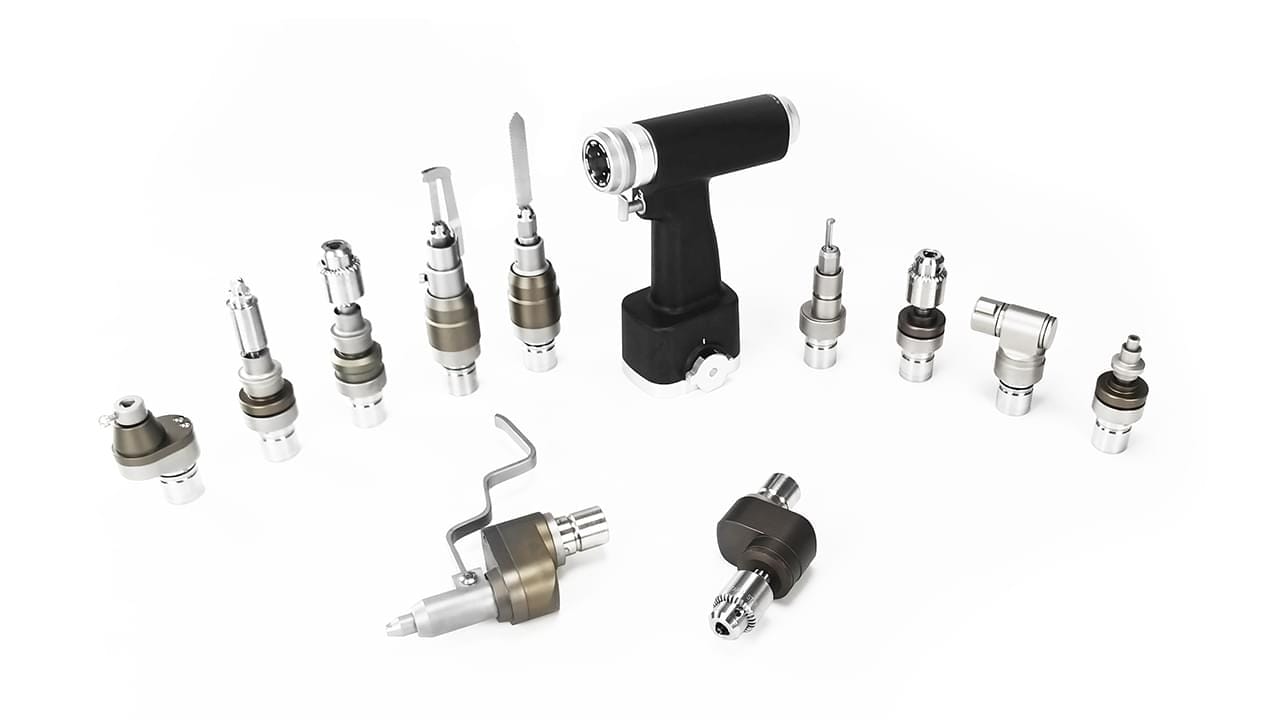

Medical Multifunction Drill Saw



DescriptionUnitQty
Handpiecepc1
Chargerpc1
Batterypc2
Battery aseptic transfer ringpc2
All these drill saw attachments can be partial chosen or full purchased.
Universal Bone drillpc1
Bone drill AO synthespc1
Canulate drill (drill chuck fixed)pc1
Canulate drill Strykerpc1
Canulate drill AOpc1
Acetabular reamer drill Strykerpc1
Acetabular reamer drill AOpc1
Oscillating saw with two saw bladespc1
Cranial mill with two mill bladespc1
Cranial drill with one drill burrpc1
Sternum saw with two saw bladespc1
Reciprocating saw with two saw bladespc1
TPLO sawpc1
Kirschner wire drill Φ0.8-Φ1.8pc1
Kirschner wire drill Φ1.5-Φ2.5pc1
Kirschner wire drill Φ2.0-Φ3.2pc1
Aluminum case for packagepc1

Main Technical Data:

 ItemParameter
Handpiece – Output power500W
Handpiece – Temperature rise≤25℃
Charger – Input voltageAC110-220V, 50-60Hz
Handpiece – Output power500W
Handpiece – Temperature rise≤25℃
Charger – Input voltageAC110-220V, 50-60Hz
Battery – Voltage14.4V
Battery – Capacity1800mAh
Battery – TypeNI-MH battery
Battery – Charging timeAround two hours
Bone drill0-3200rpm
Acetabular reamer drill0-300rpm
Cannula drill0-1000rpm
Kirschner wire drill0-3200rpm
Cannula drill0-3200rpm
Oscillating saw frequency0-18000rpm
Sternal saw (reciprocating) – saw frequency0-18000rpm
TFO saw0-18000rpm
Oscillating saw amplitude±0.5°
TFO saw amplitude10±0.5°
Sternal saw (reciprocating) – saw amplitude36±0.25mm
Saw noise≤75dB (A)
Drill noise≤65dB (A)
Drill radial runout≤0.1mm
Drill stall torque30N·m——100N·m
Drill input torque8N·m——16N·m
Kirschner wire clampingΦ0.8-1.8/Φ2.0-3.2mm

Engineered for Surgical Precision

Our medical multifunction drill saw is more than just a tool; it’s a complete solution for various surgical demands. Powered by an advanced 1800mAh high-capacity battery, it ensures long-lasting performance without interruption. With a precision motor and a high-speed drilling capability of 1200rpm, this device allows for efficient and accurate results. It’s a key tool for procedures like internal fixation with steel plates and other intricate bone work.

Key Features:

  • Multifunctional Design: Seamlessly switch between drilling and sawing with one device, ideal for a variety of surgical and non-medical applications.
  • High-Quality Steel Plates: Ensure durability and a stable surface for accurate bone work.
  • Ergonomic and Lightweight: The compact design makes it easy to handle and store, reducing user fatigue during long procedures.
  • Portable: Easily transport this tool between hospitals, clinics, or even workshops.
  • User-Friendly Interface: Intuitive controls make it simple for anyone to operate with minimal training.

The medical multifunction drill saw excels in a wide range of procedures, proving its unparalleled adaptability and reliability. It’s the ultimate choice for those seeking high-quality orthopedic power tools.

  • Human Orthopedic Surgeries: From delicate hand-foot surgery instruments to major joint replacements, this tool handles drilling and cutting with equal precision.
  • Veterinary Procedures: The NM-500 is equally effective in animal surgeries, including orthopedic repairs in dogs and equine bone resections.
  • Other Applications: Beyond the medical field, its multi-purpose functionality makes it suitable for DIY projects, woodworking, and metalworking.

We are committed to providing the best customer service and ensuring your satisfaction. All orders are carefully packaged in a sturdy aluminum case to protect the product during shipping.

Trusted by over 10,000 users globally, our system has an ISO 9001 certification, a testament to its quality and reliability. In every application, the medical multifunction drill saw adapts seamlessly—whether you’re switching from drilling to sawing mid-procedure or adjusting power for delicate tissue.
